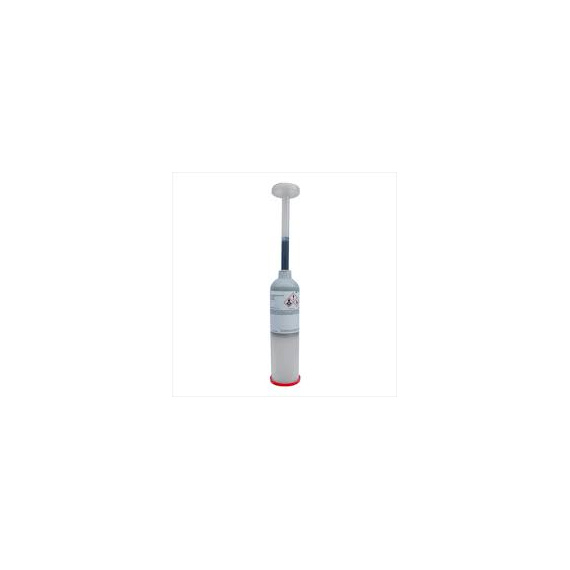

PR-1440 B2 PPG PRC-Desoto. Fuel Tank Sealant, 6 oz cartridge

This two-part fuel tank sealant is designed for aircraft applications requiring a 2-hour working life. It operates effectively within a service temperature range of -54°C to 121°C (-65°F to 250°F) and is supplied in a 6 oz cartridge containing approximately 3.5 oz of sealant.

WARNING: This product can expose you to chemicals including carbon black (airborne, unbound particles of respirable size [= 10 micrometers]), titanium dioxide (airborne, unbound particles of respirable size) and toluene, which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information visit www.P65Warnings.ca.gov.

Overview

PPG Aerospace / PRC-DeSoto PR-1440 Class B is a two-part fuel tank sealant with an approximate 2-hour application life. It consists of Part A in liquid form and Part B in solid form.

The sealant has a specific gravity of approximately 1.57 and a service temperature range from -54°C to 121°C (-65°F to 250°F). Part A has a boiling point of approximately 360°C. Relative density is approximately 1.88 for Part A and 1.57 for Part B.

Each 6 oz cartridge contains approximately 3.5 oz of sealant.

Features & Benefits

• Two-part aerospace fuel tank sealant
• Approximately 2-hour application life
• Cures at room temperature to form a resilient seal
• Mixed sealant is dark gray in color
• Part A to Part B mixing ratio of 10:100 by weight
• Tensile strength of approximately 300 psi
• Strong adhesion to common aircraft substrates
• Maintains elastomeric properties after exposure to jet fuel and aviation gasoline
• Service temperature range from -54°C to 121°C (-65°F to 250°F)

Specifications

• Series: PR-1440 Class B
• Manufacturer: PPG Aerospace / PRC-DeSoto
• Container Size: 6 oz Cartridge
• Sealant Content: Approximately 3.5 oz
• Application Life: Approximately 2 hours
• Specific Gravity: Approximately 1.57
• Relative Density: Part A – 1.88, Part B – 1.57
• Part A Boiling Point: Approximately 360°C
• Kinematic Viscosity: Approximately 0.21 cm²/s at 40°C
• Mixing Ratio by Weight: Part A : Part B – 10:100
• Tensile Strength: Approximately 300 psi
• Service Temperature: -54°C to 121°C (-65°F to 250°F)

Applications

• Fillet sealing of aircraft fuel tanks
• Aircraft fuselage sealing applications
