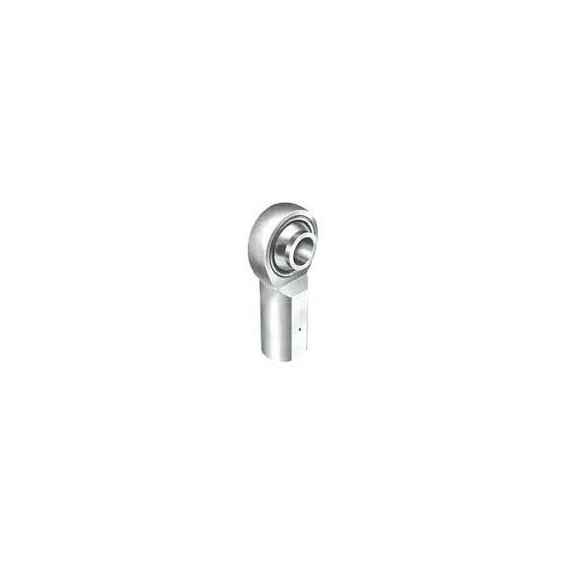

McFarlane Rod End 3/16 Bore (0550158)
MCS1104-3
Description
McFarlane Aviation Products has been producing reliable FAA-PMA approved engine controls for over 20 years, with units installed in tens of thousands of airplanes around the world. McFarlane strives to produce safe, high quality products at a reasonable price. The engine throttle control with friction lock is a perfect example of such a product.
McFarlane rod end MCS1104-3 is a direct replacement for Cessna rod end part numbers 0550158 and S1186-1 only when installed in conjunction with part numberRE-KT-1
Supersedures
| 0550158 | MCS1104-3 |
| S1104-3 | MCS1104-3 |
| S-1186-1 | MCS1104-3 |
| S1186-1 | MCS1104-3 |
Rod End Dimensions
| Part Number | Thread | Bore/Eye | Eligibility* |
|---|---|---|---|
| CA452-334A | 1/4-28 External | 0.19" | Piper* |
| CA452-335A | 1/4-28 Internal RH | 0.19" | Piper* |
| CA452-336A | 1/4-28 Internal LH | 0.19" | Piper* |
| CA452-368 | 1/2-20 Internal | 0.50" | Piper* |
| CA452-412 | 5/16-24 External | 0.25" | Piper* |
| CA452-439 | External | 0.19" | Piper* |
| CA452-860A | 1/4-28 External | 0.25" | Piper* |
| CG3011587 | External | 0.19" | Pratt and Whitney |
| GMW-3M-470 | 1/4-28 Internal RH | 0.19" | Non-certified |
| GMW-4M-470 | 1/4-28 Internal RH | 0.25" | Non-certified |
| MCS1104-3 | 10-32 Internal | 0.19" | Cessna* |
| MCS1105-3 | 10-32 External | 0.19" | Cessna* |
| MCS1106-3 | 1/4-28 Internal | 0.19" | Cessna* |
| MCS1106-4 | 1/4-28 Internal | 0.25" | Cessna* |
| MCS1819-4 | 1/4-28 Internal | 0.25" | Cessna* |
| MM-3M-500 | 10-32 External RH | 0.19" | Non-certified |
| MW-3M-500 | 10-32 Internal RH | 0.19" | Non-certified |
| S1107-3 | 3/8-24 External | 0.19" | Cessna |
| S1819-3 | 1/4-28 Internal RH | 0.19" | Cessna |
| S1823-3 | 3/8-24 External | 0.19" | Cessna |
| S2022-3 | Cessna | ||
| S2022-3L | Cessna |
Aircraft Eligibility
| Cessna | 140 | 140 | 8001 | 15075 | 1 | THROTTLE CTRL |
| Cessna | 140 | 140A | 15200 | 15724 | 1 | THROTTLE CTRL |
| Cessna | 150 | 150 | 17001 | 59018 | 1 | THROTTLE CTRL |
| Cessna | 150 | 150A | 15059019 | 15059350 | 1 | THROTTLE CTRL |
| Cessna | 150 | 150B | 15059351 | 15059700 | 1 | THROTTLE CTRL |
| Cessna | 150 | 150C | 15059701 | 15060087 | 1 | THROTTLE CTRL |
| Cessna | 150 | 150D | 15060088 | 15060772 | 1 | THROTTLE CTRL |
| Cessna | 150 | 150E | 15060773 | 15061532 | 1 | THROTTLE CTRL |
| Cessna | 150 | 150F | 15061533 | 15064532 | 1 | THROTTLE CTRL |
| Cessna | 150 | 150G | 15064533 | 15067198 | 1 | THROTTLE CTRL |
| Cessna | 150 | 150H | 15067199 | 15069308 | 1 | THROTTLE CTRL |
| Cessna | 150 | 150J | 15069309 | 15071128 | 1 | THROTTLE CTRL |
| Cessna | 150 | 150K | 15071129 | 15072003 | 1 | THROTTLE CTRL |
| Cessna | 150 | 150L | 15072004 | 15075781 | 1 | THROTTLE CTRL |
| Cessna | 150 | 150M | 15075782 | 15079405 | 1 | THROTTLE CTRL |
| Cessna | 150 | A150K | A1500001 | A1500226 | 1 | THROTTLE CTRL |
| Cessna | 150 | A150L | A1500227 | A1500523 | 1 | THROTTLE CTRL |
| Cessna | 150 | A-150L | A-1501001 | A-1501039 | 1 | THROTTLE CTRL |
| Cessna | 150 | A150M | A1500524 | A1500734 | 1 | THROTTLE CTRL |
| Cessna | 150 | A-A150L | A-A1500001 | A-A1500009 | 1 | THROTTLE CTRL |
| Cessna | 150 | F150F | F150-0001 | F150-0067 | 1 | THROTTLE CTRL |
| Cessna | 150 | F150G | F150-0068 | F150-0219 | 1 | THROTTLE CTRL |
| Cessna | 150 | F150H | F150-0220 | F150-0389 | 1 | THROTTLE CTRL |
| Cessna | 150 | F150J | F150-0390 | F150-0529 | 1 | THROTTLE CTRL |
| Cessna | 150 | F150K | F15000530 | F15000658 | 1 | THROTTLE CTRL |
| Cessna | 150 | F150L | F15000659 | F15001143 | 1 | THROTTLE CTRL |
| Cessna | 150 | F150M | F15001144 | F15001428 | 1 | THROTTLE CTRL |
| Cessna | 150 | FA150K | FA1500001 | FA1500081 | 1 | THROTTLE CTRL |
| Cessna | 150 | FA150L | FA1500082 | FA1500120 | 1 | THROTTLE CTRL |
| Cessna | 150 | FA150L (with FKA150-2311 and FKA150-2316) | FA1500121 | FA1500261 | 1 | THROTTLE CTRL |
| Cessna | 150 | FA150M (with FKA150-2311 and FKA150-2316) | FA1500262 | FA1500336 | 1 | THROTTLE CTRL |
| Cessna | 150 | FRA150L | FRA1500121 | FRA1500261 | 1 | THROTTLE CTRL |
| Cessna | 150 | FRA150M | FRA1500262 | FRA1500336 | 1 | THROTTLE CTRL |
| Cessna | 152 | 152 | 15279406 | 15286033 | 1 | THROTTLE CTRL |
| Cessna | 152 | A152 | A1520735 | A1521049 | 1 | THROTTLE CTRL |
| Cessna | 152 | F152 | F15201429 | F15201980 | 1 | THROTTLE CTRL |
| Cessna | 152 | FA152 | FA1520337 | FA1520425 | 1 | THROTTLE CTRL |
| Cessna | 170 | 170A | 18730 | 20266 | 1 | THROTTLE CTRL |
| Cessna | 170 | 170B | 20267 | 27169 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172 | 28000 | 46754 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172A | 46755 | 47746 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172B | 17247747 | 17248734 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172C | 17248735 | 17249544 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172D | 17249545 | 17250572 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172E | 17250573 | 17251822 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172F (T-41A) | 17251823 | 17253392 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172G | 17253393 | 17254892 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172H (T-41A) | 17254893 | 17256512 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172I | 17256513 | 17257161 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172K | 17257162 | 17259223 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172L | 17259224 | 17260758 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172M | 17260759 | 17263458 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172M | 17263459 | 17267584 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172N | 17267585 | 17274009 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172P | 17274010 | 17276654 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172Q | 17275869 | 17276211 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172R | 17280001 | 17299999 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172R | 17280001 | 17299999 | 1 | MIXTURE CTRL |
| Cessna | 172 | 172RG | 172RG0001 | 172RG1191 | 1 | PROP CTRL |
| Cessna | 172 | 172RG | 172RG0001 | 172RG1191 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172S | 172S8001 | 172S99999 | 1 | THROTTLE CTRL |
| Cessna | 172 | 172S | 172S8001 | 172S99999 | 1 | MIXTURE CTRL |
| Cessna | 172 | F172D | F172-0001 | F172-0018 | 1 | THROTTLE CTRL |
| Cessna | 172 | F172E | F172-0019 | F172-0085 | 1 | THROTTLE CTRL |
| Cessna | 172 | F172F | F172-0086 | F172-0179 | 1 | THROTTLE CTRL |
| Cessna | 172 | F172G | F172-0180 | F172-0319 | 1 | THROTTLE CTRL |
| Cessna | 172 | F172H | F17200655 | F17200754 | 1 | THROTTLE CTRL |
| Cessna | 172 | F172H | F172-0320 | F172-0654 | 1 | THROTTLE CTRL |
| Cessna | 172 | F172K | F17200755 | F17200804 | 1 | THROTTLE CTRL |
| Cessna | 172 | F172L | F17200805 | F17200904 | 1 | THROTTLE CTRL |
| Cessna | 172 | F172M | F17200905 | F17201234 | 1 | THROTTLE CTRL |
| Cessna | 172 | F172M | F17201235 | F17201514 | 1 | THROTTLE CTRL |
| Cessna | 172 | F172N | F17201515 | F17202039 | 1 | THROTTLE CTRL |
| Cessna | 172 | F172P | F17202040 | F17202254 | 1 | THROTTLE CTRL |
| Cessna | 172 | FR172E | FR17200001 | FR17200060 | 1 | THROTTLE CTRL |
| Cessna | 172 | FR172E | FR17200001 | FR17200060 | 1 | PROP CTRL |
| Cessna | 172 | FR172E | FR17200001 | FR17200060 | 1 | MIXTURE CTRL |
| Cessna | 172 | FR172F | FR17200061 | FR17200145 | 1 | MIXTURE CTRL |
| Cessna | 172 | FR172F | FR17200061 | FR17200145 | 1 | PROP CTRL |
| Cessna | 172 | FR172F | FR17200061 | FR17200145 | 1 | THROTTLE CTRL |
| Cessna | 172 | FR172G | FR17200146 | FR17200225 | 1 | PROP CTRL |
| Cessna | 172 | FR172G | FR17200146 | FR17200225 | 1 | MIXTURE CTRL |
| Cessna | 172 | FR172G | FR17200146 | FR17200225 | 1 | THROTTLE CTRL |
| Cessna | 172 | FR172H | FR17200226 | FR17200350 | 1 | PROP CTRL |
| Cessna | 172 | FR172H | FR17200226 | FR17200350 | 1 | MIXTURE CTRL |
| Cessna | 172 | FR172H | FR17200226 | FR17200350 | 1 | THROTTLE CTRL |
| Cessna | 172 | FR172J | FR17200351 | FR17200590 | 1 | MIXTURE CTRL |
| Cessna | 172 | FR172J | FR17200351 | FR17200590 | 1 | THROTTLE CTRL |
| Cessna | 172 | FR172J | FR17200351 | FR17200590 | 1 | PROP CTRL |
| Cessna | 172 | FR172K | FR17200591 | FR17200675 | 1 | MIXTURE CTRL |
| Cessna | 172 | FR172K | FR17200591 | FR17200675 | 1 | THROTTLE CTRL |
| Cessna | 172 | FR172K | FR17200591 | FR17200675 | 1 | PROP CTRL |
| Cessna | 172 | P172D | P17257120 | P17257188 | 1 | PROP CTRL |
| Cessna | 172 | R172K | R1722000 | R1723454 | 1 | PROP CTRL |
| Cessna | 172 | R172K | R1722000 | R1723454 | 1 | MIXTURE CTRL |
| Cessna | 172 | R172K | R1722000 | R1723454 | 1 | THROTTLE CTRL |
| Cessna | 175 | 175 | 55001 | 56238 | 1 | PROP CTRL |
| Cessna | 175 | 175A | 56239 | 56777 | 1 | PROP CTRL |
| Cessna | 175 | 175B | 17556778 | 17557002 | 1 | PROP CTRL |
| Cessna | 175 | 175C | 17557003 | 17557119 | 1 | PROP CTRL |
| Cessna | 177 | 177 | 17700001 | 17701164 | 1 | MIXTURE CTRL |
| Cessna | 177 | 177 | 17700001 | 17701164 | 1 | THROTTLE CTRL |
| Cessna | 177 | 177 | 17701371 | 17701164 | 1 | PROP CTRL |
| Cessna | 177 | 177A | 17701165 | 17701370 | 1 | PROP CTRL |
| Cessna | 177 | 177A | 17701165 | 17701370 | 1 | THROTTLE CTRL |
| Cessna | 177 | 177B | 17701371 | 17702752 | 1 | PROP CTRL |
| Cessna | 177 | 177B | 17701371 | 17702752 | 1 | THROTTLE CTRL |
| Cessna | 177 | 177RG | 177RG0001 | 177RG1366 | 1 | PROP CTRL |
| Cessna | 177 | 177RG | 177RG0001 | 177RG1366 | 1 | THROTTLE CTRL |
| Cessna | 177 | 177RG | 177RG0001 | 177RG1366 | 1 | MIXTURE CTRL |
| Cessna | 177 | F177RG | F177RG0001 | F177RG0177 | 1 | THROTTLE CTRL |
| Cessna | 177 | F177RG | F177RG0001 | F177RG0177 | 1 | PROP CTRL |
| Cessna | 177 | F177RG | F177RG0001 | F177RG0177 | 1 | MIXTURE CTRL |
| Cessna | 180 | 180 | 30000 | 32661 | 1 | PROP CTRL |
| Cessna | 180 | 180A | 32662 | 50355 | 1 | PROP CTRL |
| Cessna | 180 | 180B | 50356 | 50661 | 1 | PROP CTRL |
| Cessna | 180 | 180C | 50662 | 50911 | 1 | PROP CTRL |
| Cessna | 180 | 180D | 18050912 | 18051063 | 1 | PROP CTRL |
| Cessna | 180 | 180E | 18051064 | 18051183 | 1 | PROP CTRL |
| Cessna | 180 | 180F | 18051184 | 18051312 | 1 | PROP CTRL |
| Cessna | 180 | 180G | 18051313 | 18051445 | 1 | PROP CTRL |
| Cessna | 180 | 180H | 18051446 | 18052284 | 1 | PROP CTRL |
| Cessna | 180 | 180J | 18052285 | 18052384 | 1 | PROP CTRL |
| Cessna | 180 | 180J | 18052385 | 18052770 | 1 | PROP CTRL |
| Cessna | 180 | 180K | 18052771 | 18053203 | 1 | PROP CTRL |
| Cessna | 182 | 182 | 33000 | 33842 | 1 | PROP CTRL |
| Cessna | 182 | 182A | 33843 | 51556 | 1 | PROP CTRL |
| Cessna | 182 | 182B | 51557 | 52358 | 1 | PROP CTRL |
| Cessna | 182 | 182C | 52359 | 53007 | 1 | PROP CTRL |
| Cessna | 182 | 182D | 18253008 | 18253598 | 1 | PROP CTRL |
| Cessna | 182 | 182E | 18253599 | 18254423 | 1 | PROP CTRL |
| Cessna | 182 | 182F | 18254424 | 18255058 | 1 | PROP CTRL |
| Cessna | 182 | 182G | 18255059 | 18255844 | 1 | PROP CTRL |
| Cessna | 182 | 182H | 18255846 | 18256684 | 1 | PROP CTRL |
| Cessna | 182 | 182J | 18256685 | 18257625 | 1 | PROP CTRL |
| Cessna | 182 | 182K | 18257626 | 18258505 | 1 | PROP CTRL |
| Cessna | 182 | 182L | 18258506 | 18259305 | 1 | PROP CTRL |
| Cessna | 182 | 182M | 18259306 | 18260055 | 1 | PROP CTRL |
| Cessna | 182 | 182N | 18260056 | 18260825 | 1 | PROP CTRL |
| Cessna | 182 | 182P | 18260826 | 18262465 | 1 | PROP CTRL |
| Cessna | 182 | 182P | 18262466 | 18265175 | 1 | PROP CTRL |
| Cessna | 182 | 182Q | 18265176 | 18267715 | 1 | PROP CTRL |
| Cessna | 182 | 182R | 18267716 | 18268586 | 1 | PROP CTRL |
| Cessna | 182 | 182S | 18280001 | 18280944 | 1 | PROP CTRL |
| Cessna | 182 | 182S | 18280001 | 18280944 | 1 | THROTTLE CTRL |
| Cessna | 182 | 182S | 18280001 | 18280944 | 1 | MIXTURE CTRL |
| Cessna | 182 | 182T | 18280945 | 182999999 | 1 | PROP CTRL |
| Cessna | 182 | 182T | 18280945 | 182999999 | 1 | MIXTURE CTRL |
| Cessna | 182 | 182T | 18280945 | 182999999 | 1 | THROTTLE CTRL |
| Cessna | 182 | F182P | F18200001 | F18200025 | 1 | PROP CTRL |
| Cessna | 182 | F182Q | F18200026 | F18200169 | 1 | PROP CTRL |
| Cessna | 182 | FR182 | FR18200001 | FR18200070 | 1 | THROTTLE CTRL |
| Cessna | 182 | FR182 | FR18200001 | FR18200070 | 1 | PROP CTRL |
| Cessna | 182 | R182 | R18200001 | R18202041 | 1 | PROP CTRL |
| Cessna | 182 | R182 | R18200001 | R18202041 | 1 | THROTTLE CTRL |
| Cessna | 182 | T182 | 18267716 | 18268541 | 1 | PROP CTRL |
| Cessna | 182 | T182T | T18208001 | T182999999 | 1 | MIXTURE CTRL |
| Cessna | 182 | T182T | T18208001 | T182999999 | 1 | PROP CTRL |
| Cessna | 182 | T182T | T18208001 | T182999999 | 1 | THROTTLE CTRL |
| Cessna | 182 | TR182 | R18200584 | R18202041 | 1 | THROTTLE CTRL |
| Cessna | 182 | TR182 | R18200584 | R18202041 | 1 | PROP CTRL |
| Cessna | 185 | 185 | 185-0001 | 185-0237 | 1 | MIXTURE CTRL |
| Cessna | 185 | 185 | 185-0001 | 185-0237 | 1 | THROTTLE CTRL |
| Cessna | 185 | 185 | 185-0001 | 185-0237 | 1 | PROP CTRL |
| Cessna | 185 | 185A | 185-0238 | 185-0512 | 1 | MIXTURE CTRL |
| Cessna | 185 | 185A | 185-0238 | 185-0512 | 1 | PROP CTRL |
| Cessna | 185 | 185A | 185-0238 | 185-0512 | 1 | THROTTLE CTRL |
| Cessna | 185 | 185B | 185-0513 | 185-0653 | 1 | THROTTLE CTRL |
| Cessna | 185 | 185B | 185-0513 | 185-0653 | 1 | MIXTURE CTRL |
| Cessna | 185 | 185B | 185-0513 | 185-0653 | 1 | PROP CTRL |
| Cessna | 185 | 185C | 185-0654 | 185-0776 | 1 | MIXTURE CTRL |
| Cessna | 185 | 185C | 185-0654 | 185-0776 | 1 | PROP CTRL |
| Cessna | 185 | 185C | 185-0654 | 185-0776 | 1 | THROTTLE CTRL |
| Cessna | 185 | 185D | 185-0777 | 185-0967 | 1 | THROTTLE CTRL |
| Cessna | 185 | 185D | 185-0777 | 185-0967 | 1 | PROP CTRL |
| Cessna | 185 | 185D | 185-0777 | 185-0967 | 1 | MIXTURE CTRL |
| Cessna | 185 | 185E | 185-0968 | 185-1149 | 1 | THROTTLE CTRL |
| Cessna | 185 | 185E | 185-0968 | 185-1149 | 1 | MIXTURE CTRL |
| Cessna | 185 | 185E | 185-0968 | 185-1149 | 1 | PROP CTRL |
| Cessna | 185 | A185E | 18501600 | 18502090 | 1 | THROTTLE CTRL |
| Cessna | 185 | A185E | 18501600 | 18502090 | 1 | PROP CTRL |
| Cessna | 185 | A185E | 18501600 | 18502090 | 1 | MIXTURE CTRL |
| Cessna | 185 | A185E | 185-0968 | 185-1599 | 1 | THROTTLE CTRL |
| Cessna | 185 | A185E | 185-0968 | 185-1599 | 1 | PROP CTRL |
| Cessna | 185 | A185E | 185-0968 | 185-1599 | 1 | MIXTURE CTRL |
| Cessna | 185 | A185F | 18502091 | 18502310 | 1 | PROP CTRL |
| Cessna | 185 | A185F | 18502091 | 18502310 | 1 | MIXTURE CTRL |
| Cessna | 185 | A185F | 18502091 | 18502310 | 1 | THROTTLE CTRL |
| Cessna | 185 | A185F | 18502311 | 18503683 | 1 | THROTTLE CTRL |
| Cessna | 185 | A185F | 18502311 | 18504448 | 1 | PROP CTRL |
| Cessna | 185 | A185F | 18502311 | 18504448 | 1 | MIXTURE CTRL |
| Cessna | 188 | 188 | 188-0001 | 188-0572 | 1 | THROTTLE CTRL |
| Cessna | 188 | 188 | 188-0001 | 188-0572 | 1 | MIXTURE CTRL |
| Cessna | 188 | 188 | 188-0001 | 188-0572 | 1 | PROP CTRL |
| Cessna | 188 | 188 | 188-0001 | 188-0572 | 1 | PROP CTRL |
| Cessna | 188 | 188 | 188-0001 | 188-0572 | 1 | THROTTLE CTRL |
| Cessna | 188 | 188A | 18800573 | 18800832 | 1 | PROP CTRL |
| Cessna | 188 | 188A | 18800573 | 18800832 | 1 | MIXTURE CTRL |
| Cessna | 188 | 188A | 18800573 | 18800832 | 1 | PROP CTRL |
| Cessna | 188 | 188A | 18800573 | 18800832 | 1 | THROTTLE CTRL |
| Cessna | 188 | 188A | 18800573 | 18800832 | 1 | THROTTLE CTRL |
| Cessna | 188 | 188B | 18800833 | 18802348 | 1 | THROTTLE CTRL |
| Cessna | 188 | 188B | 18800833 | 18802348 | 1 | PROP CTRL |
| Cessna | 188 | A188 | 188-0001 | 188-0572 | 1 | THROTTLE CTRL |
| Cessna | 188 | A188 | 188-0001 | 188-0572 | 1 | THROTTLE CTRL |
| Cessna | 188 | A188 | 188-0001 | 188-0572 | 1 | MIXTURE CTRL |
| Cessna | 188 | A188 | 188-0001 | 188-0572 | 1 | PROP CTRL |
| Cessna | 188 | A188 | 188-0001 | 188-0572 | 1 | PROP CTRL |
| Cessna | 188 | A188A | 18800573 | 18800832 | 1 | THROTTLE CTRL |
| Cessna | 188 | A188A | 18800573 | 18800832 | 1 | THROTTLE CTRL |
| Cessna | 188 | A188A | 18800573 | 18800832 | 1 | PROP CTRL |
| Cessna | 188 | A188A | 18800573 | 18800832 | 1 | MIXTURE CTRL |
| Cessna | 188 | A188A | 18800573 | 18800832 | 1 | PROP CTRL |
| Cessna | 188 | A188B | 18800833 | 18802348 | 1 | THROTTLE CTRL |
| Cessna | 1
Features
General
Manufacturer Part Number
0550158
Reviews
No reviews found
Please sign in so that we can notify you about a reply
You may be interested
Specialist aviation oils, greases and lubricants from leading manufacturers Quality aircraft parts, filters, batteries and maintenance consumables Knowledgeable service and support backed by aviation experience
Payments powered by Stripe
|
